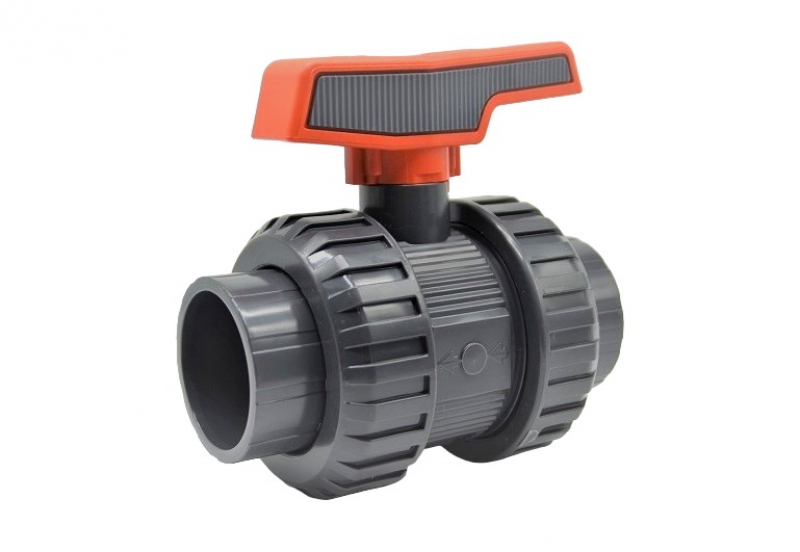

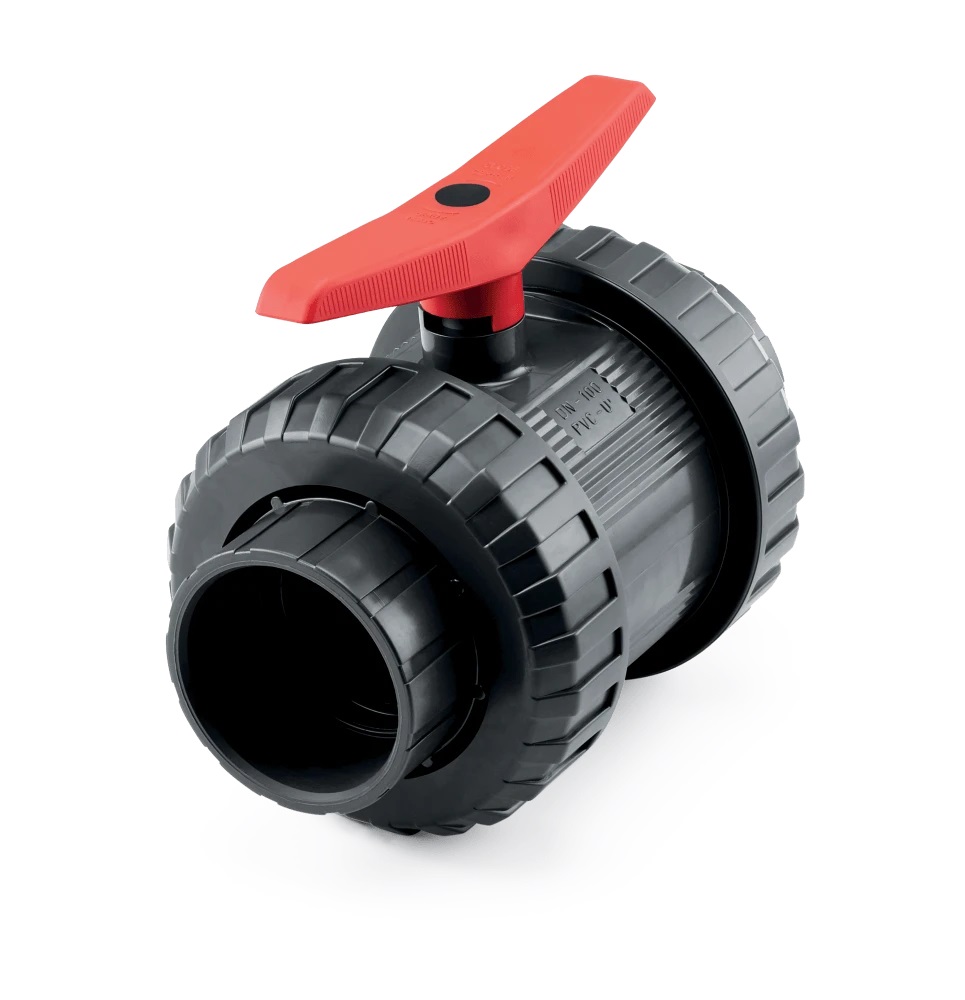

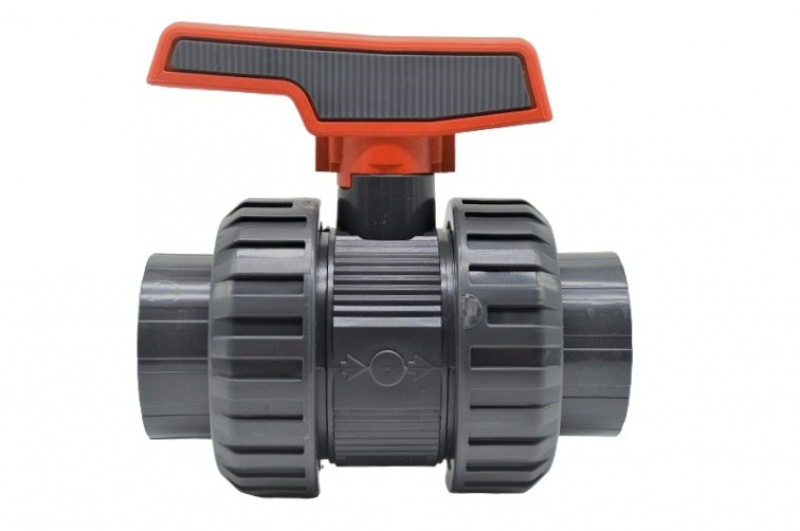

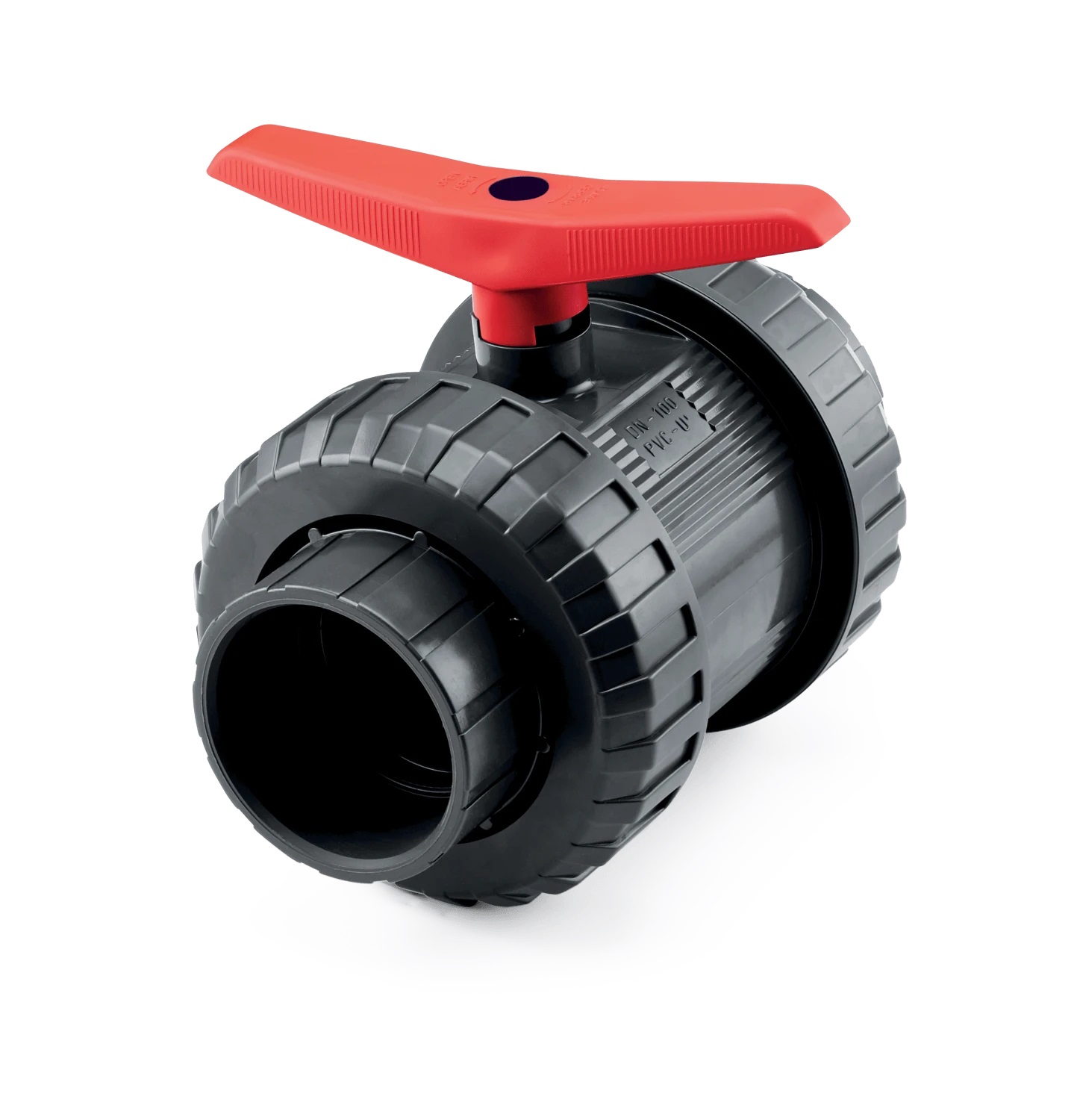

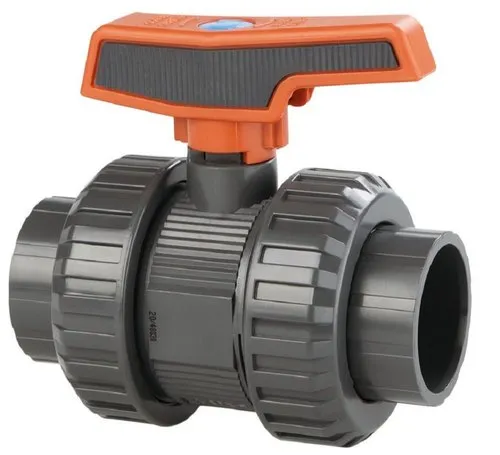

UPVC TRUE UNION BALL VALVE - IND

TECHNICAL CHARACTERISTICS

  • “Antiblock” system that avoids ball blockage.
  •  100% factory tested.
  •  Minimal pressure drop.
  •  Low operating torque.
  •  Resistance to many inorganic chemicals.
  •  Excellent flow characteristics.

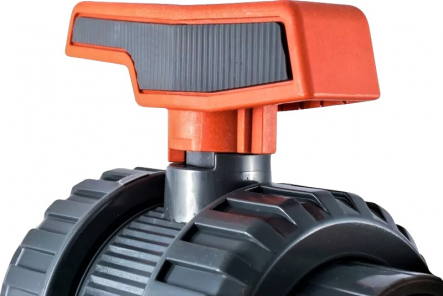

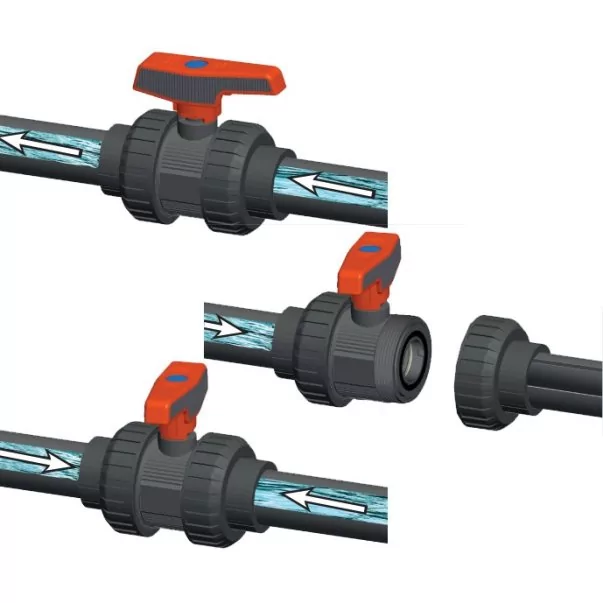

  •  Threaded seal-carrier for upstream maintenance without emptying the system. Handle built-in tool for easy adjustment of the threaded seal-carrier (and ball torque).

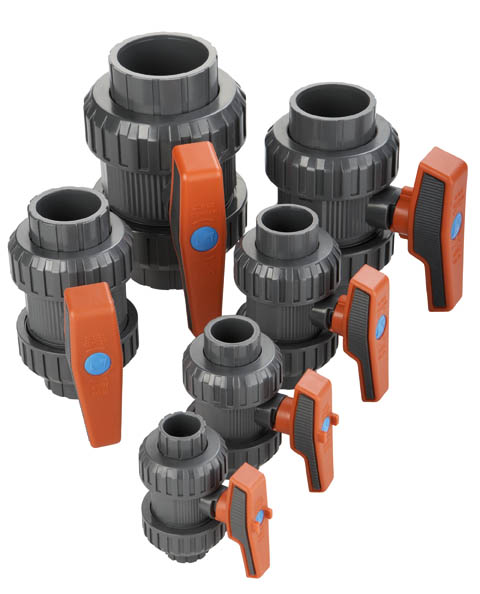

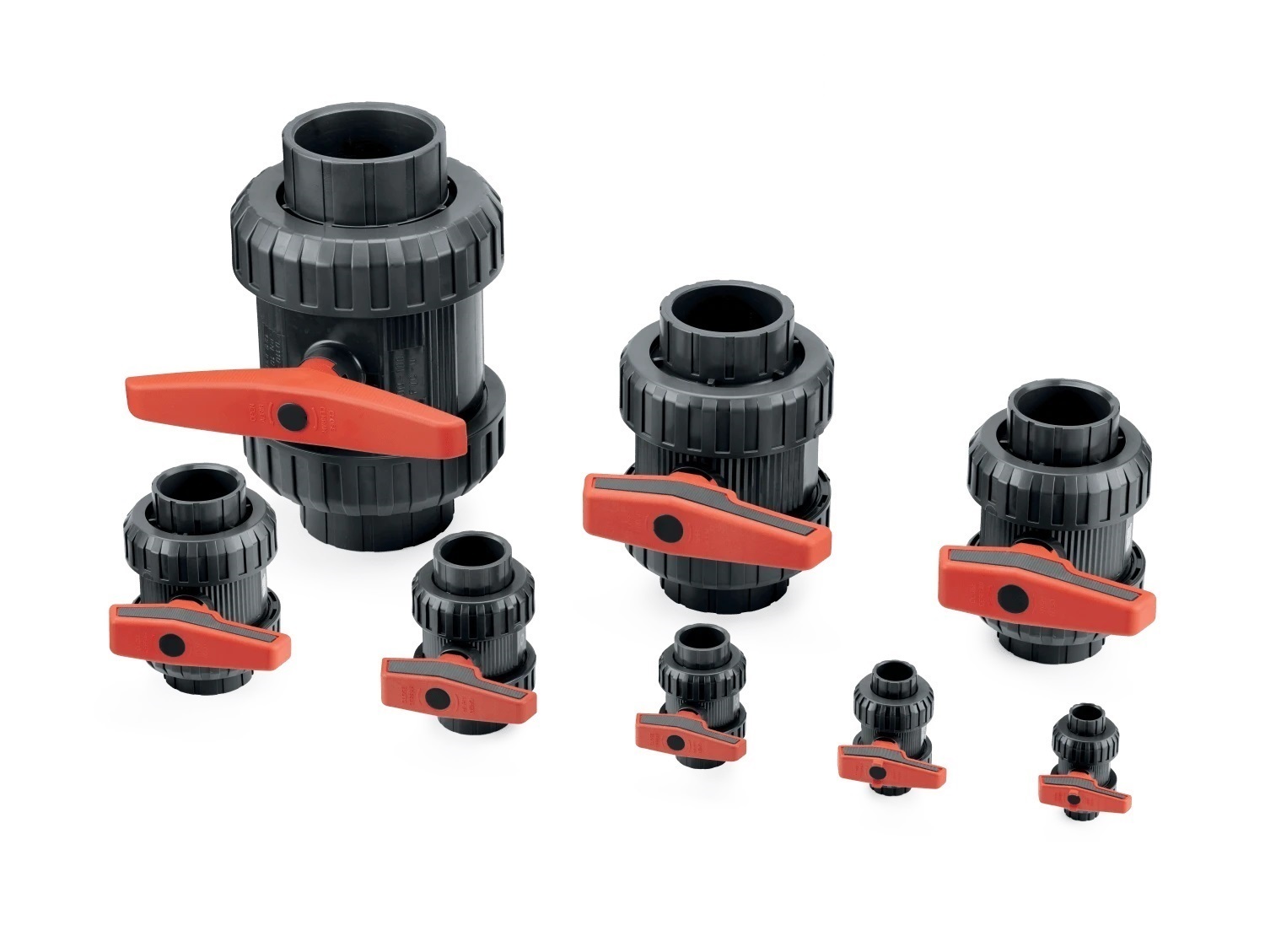

  •  Sizes from D16 to D125 (⅜”-4”).
  •  Available standards: Metric, ASTM,British Standard, JIS.
  •  Threaded versions: BSP and NPT.
  •  O-Rings available in food grade EPDM or Viton®.
  •  Ball seat available in HDPE or PTFE.
  •  Working pressure at 20°C (73°F) water temperature:
  •  D16-D63 (⅜”-2”): PN16 (240 psi)
  •  D75-D125 (2½”-4”): PN 10(150 psi)
  • Description
  • Videos
FGI. PARTS MATERIAL
1 Shaft PVC-U
2 Ball PVC-U
3 Union Nut PVC-U
4 Handle PP + TPE
5 End Connector PVC-U
6 Ball Seat HDPE/PTFE
7 Shaft O-Ring EPDM/Food Grade EPDM
8 Dampener Seal EPDM/Food Grade EPDM
9 End Connector O-Ring EPDM/Food Grade EPDM
10 Body  PVC-U
11 Seal - Carrier PVC-U

A UPVC true union ball valve is a type of valve that can be used to control the flow of liquids in a system:

EVA UPVC true union ball valve is a type of valve, commonly used for fluid control, that features a union connection on both ends, allowing easy installation, maintenance, and repair without disrupting the entire pipeline. Here is more detailed explanation:

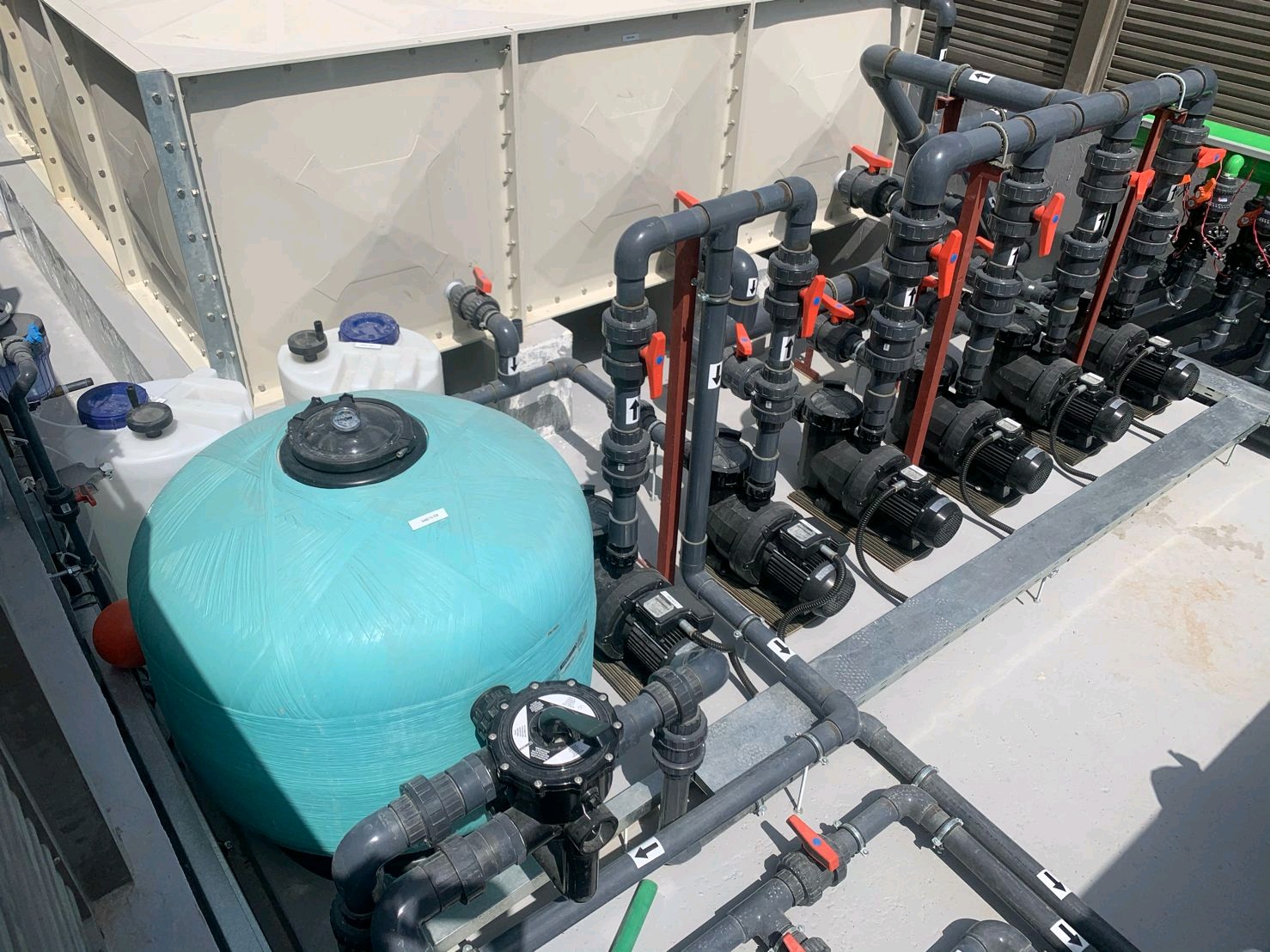

How it works A true union ball valve has a rounded component inside that allows liquids to pass through in one direction. When liquid tries to pass back through, the valve closes. • Features True union ball valves are easy to install and remove without cutting the pipeline. They can also be disassembled for repairs or replacements without having to take the entire system apart. • Uses True union ball valves are often used in irrigation systems, pool plumbing, and sprinkler systems. • Materials True union ball valves can be made from a variety of materials, including UPVC, EPDM, and PTFE. • Seal materials The seals in a ball valve come into contact with the liquid passing through the valve
